Three-way Bi-amp full range system

CV-253

CV-253 is a unique three-way, bi-amp full range system. It is equipped with two 15 inch wave horn loaded woofers, one 10 inch wave horn loaded mid-range driver and one 3 inch neodymium compression driver. The Mid-Hi components are coaxial structure. Its fully loaded quality components bring out amazing power output, and the new innovative horn design ensures a wider and further coverage at the same time.

Product number:1085526758578081792

Category: CV SERIES
BACK

Back to list

Inquire Now
info@cvraudio.com

隐藏域元素占位

  • Product Description
  • Parameter

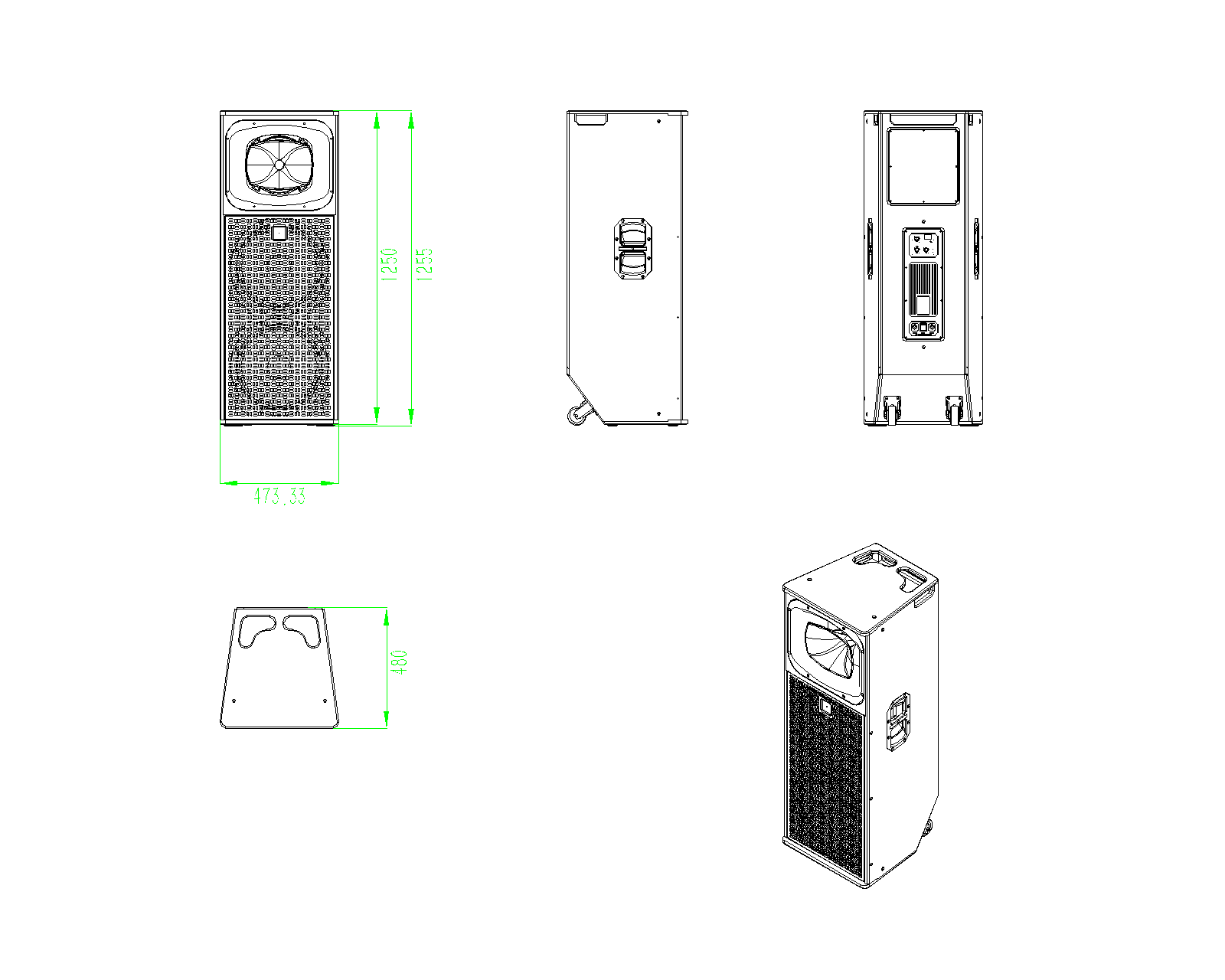

  • Drawing
  • Connection Diagram
  • Accessories

  • DESCRIPTION

    • CV-253 is a unique three-way, bi-amp full range system. It is equipped with two 15 inch wave horn loaded woofers, one 10 inch wave horn loaded mid-range driver and one 3 inch neodymium compression driver. The Mid-Hi components are coaxial structure.
    • Its fully loaded quality components bring out amazing power output, and the new innovative horn design ensures a wider and further coverage at the same time.
    • The cabinet is constructed from 18mm and 24mm birchwood with an impact and weather protective PCP (Polyurea Cabinet Protection) finish. The front of the loudspeaker cabinet is protected by a rigid metal grill backed by an acoustically transparent fabric.
    • Two castors are hidden at the bottom,  handles are on the top and two sides of the cabinet. All these humanized designs make transportation easier for any types of indoor or outdoor applications. One of the outstanding point of CV-253 is its bi-amp swtich design brings stronger S.P.L , it can reduce distortion when it plays at its full power output.

    APPLICATIONS

    • Live performance venues
    • Stadiums
    • Conference Halls
    • Houses of worship
    Keywords:
    • CV-253

  • TECHNICAL PARAMETERS

    Model

    CV-253

    Type

    Three-way Bi-amp full range system

    Frequency Response

    45Hz-18kHz±3dB

    Power handling

    LF 1200W(RMS)4800W(PEAK)
    MF+HF 400W(RMS)1600W(PEAK)

    Sensitivity

    LF 105dB(1W@1M)
    MF+HF 106dB(1W@1M)

    Max SPL

    LF 136dB(PEAK)
    MF+HF 138dB(PEAK)

    Drivers

    LF 2x15"(380mm) woofer 100mm(4in)coil
    MF 10"(250mm)Mid bass75mm(3in)coil
    HF 3" neodymium compression driver with 75mm titanium diaphragm

    Nominal impedance

    LF 4 ohm
    MF+HF 8 ohm

    Coverage

    80º H×40º V

    Connections

    LF 1(+)1(-) Bi-amp1(+)1(-)   MF+HF2(+)2(-)

    PHYSICAL PARAMETERS

    Finish

    Textured high-density polyurethane coating

    Connectors

    2×NL4MP speakon

    Enclosure

    Birch Plywood

    Dimensions

    473.6×1250×480mm(W×H×D)

    Packing Dimensions

    550×1330×550mm(W×H×D)/0.4cbm

    Net weight

    72kg

    Gross weight

    77kg

    POWER AMPLIFIER PARAMETERS

    Amplifier type

    Switching mode amplifier, class D circuit

    Power Output (RMS)

    2x900W/8ohm

    Weight

    3.8kg

    Configuration

    The amp module is built inside CV-253
