W-121/W-121P(Active)&W-81/W-81P(Active)
W-121&W-81 is a compact, modular, strong SPL, high-fidelity, all-weather linear array sound reinforcement system.The W-121 & W-81 cabinets are made of 18mm and 24mm birch-wood, which is compact, safe and durable.W-121&W-81 are equipped with multiple ergonomic handles for easy transport, stacking and hangingW-121 & W-81 have unique CVR brand grille,which is made of high-strength low-carbon structural steel, with splash-proof sound-permeable mesh inside to ensure balanced sound wave transmissionThe W-121&W-81 cabinets are finished with high-grade black polyurethane paint with waterproof and super wear-resistant.The hanging hardware and the front grilles have undergone tensile strength tests and salt spray tests, making the speaker system suitable for all-weather applications.W-121&W-81 adopts modular designs. It can be easily switched to active mode or passive mode by installing amplifier module or passive activity back panel.W-121&W-81 can be installed in a variety of combinations. which can be flexibly and conveniently used in all type of applications.W-121 is a phase-inverted line array speaker, it composed of a 4-inch neodymium tweeter and a 12-inch neodymium woofer.The box has a compact structure, novel appearance, and convenient hoisting.It is equipped with our latest P-2900W waterproof switching mode amplifier module. The built-in DSP control ensures the smooth operation of the system while outputting 140dB high-fidelity sound. The amplifier module has a smart appearance, excellent heat dissipation, and good waterproof performance.W-81 is a bandpass subwoofer composed of an 18-inch woofer. It is equipped with a P-2900W waterproof switching mode amplifier module. The built-in DSP control enables the bass bin bring powerful low frequency. And it can be smoothly connected with W-121 line array tops.Applications: auditorium Multi-purpose Hall club mobile performance
Description
- W-121&W-81 is a compact, modular, strong SPL, high-fidelity, all-weather linear array sound reinforcement system.
- The W-121 & W-81 cabinets are made of 18mm and 24mm birch-wood, which is compact, safe and durable.
- W-121&W-81 are equipped with multiple ergonomic handles for easy transport, stacking and hanging
- W-121 & W-81 have unique CVR brand grille,which is made of high-strength low-carbon structural steel, with splash-proof sound-permeable mesh inside to ensure balanced sound wave transmission
- The W-121&W-81 cabinets are finished with high-grade black polyurethane paint with waterproof and super wear-resistant.
- The hanging hardware and the front grilles have undergone tensile strength tests and salt spray tests, making the speaker system suitable for all-weather applications.
- W-121&W-81 adopts modular designs. It can be easily switched to active mode or passive mode by installing amplifier module or passive activity back panel.
- W-121&W-81 can be installed in a variety of combinations. which can be flexibly and conveniently used in all type of applications.
- W-121 is a phase-inverted line array speaker, it composed of a 4-inch neodymium tweeter and a 12-inch neodymium woofer.
- The box has a compact structure, novel appearance, and convenient hoisting.
- It is equipped with our latest P-2900W waterproof switching mode amplifier module. The built-in DSP control ensures the smooth operation of the system while outputting 140dB high-fidelity sound. The amplifier module has a smart appearance, excellent heat dissipation, and good waterproof performance.
- W-81 is a bandpass subwoofer composed of an 18-inch woofer. It is equipped with a P-2900W waterproof switching mode amplifier module. The built-in DSP control enables the bass bin bring powerful low frequency. And it can be smoothly connected with W-121 line array tops.
- Applications:
auditorium
Multi-purpose Hall
club
mobile performance
Parameter
| TECHNICAL PARAMETERS | |
| Model | W-121&W-121P(Active) |
| Type | Two-way Line array system |
| Frequency Response | 60Hz-20KHz±3dB |
| Power handling | LF 500W(RMS)2000W(PEAK) HF 120W(RMS)480W(PEAK) |
| Sensitivity | LF 106dB(1W@1M) HF 110dB(1W@1M) |
| Max SPL | LF 133dB(PEAK/1M) HF 140dB(PEAK/1M) |
| Drivers | LF 1×12"(310mm)neodymium woofer 75mm(3in)coil HF1×4" neodymium compression driver with 100mm titanium diaphragm |
| Nominal impedance | 8 ohm |
| Coverage | 120º H×15º V |
| Connectors | 2×NL4MP speakon |
| Connections | LF 1(+)1(-) HF 2(+)2(-) |
| PHYSICAL PARAMETERS | |
| Finish | Textured high-density polyurethane coating |
| Enclosure Material | Birch Plywood |
| Dimensions | 610×355×550mm(W×H×D) |
| Packing Dimensions | 685×455×620mm(W×H×D)/0.193cbm |
| Net weight | 33.5kg(W-121)/35.8kg(W-121P) |
| Gross weight | 42kg(W-121)/44kg(W-121P) |
| POWER AMPLIFIER PARAMETERS | |
| Amplifier type | Switching mode amplifier,class D circuit |
| Power Output(RMS) | 2X900W/8ohm |
| Weight | 3.6kg |
| Configuration | The amp moduie is built inside W-121P |
| TECHNICAL PARAMETERS | |
| Model | W-81&W-81P(Active) |
| Type | Line array subwoofer system |
| Frequency Response | 32Hz-150Hz±3dB |
| Power handling | 1000W(RMS)4000W(PEAK) |
| Sensitivity | 108dB(1W@1M) |
| Max SPL | 140dB(PEAK/1M) |
| Drivers | 1×18"(460mm) woofer 100mm(4in)coil |
| Nominal impedance | 8 ohm |
| Connectors | 2×NL4MP speakon |
| PHYSICAL PARAMETERS | |
| Finish | Textured high-density polyurethane coating |
| Enclosure Material | Birch Plywood |
| Dimensions | 610×675×800mm(W×H×D) |
| Packing Dimensions | 825x675x760(W×H×D)/0.42cbm |
| Net weight | 81kg(W-81)83.5kg(W-81P) |
| Gross weight | 86kg(W-81)89kg(W-81P) |
| POWER AMPLIFIER PARAMETERS | |
| Amplifier type | Switching mode amplifier,class D circuit |
| Power Output(RMS) | 2x900W/8ohm |
| Weight | 3.6kg |
| Configuration | The amp moduie is built inside W-81P |

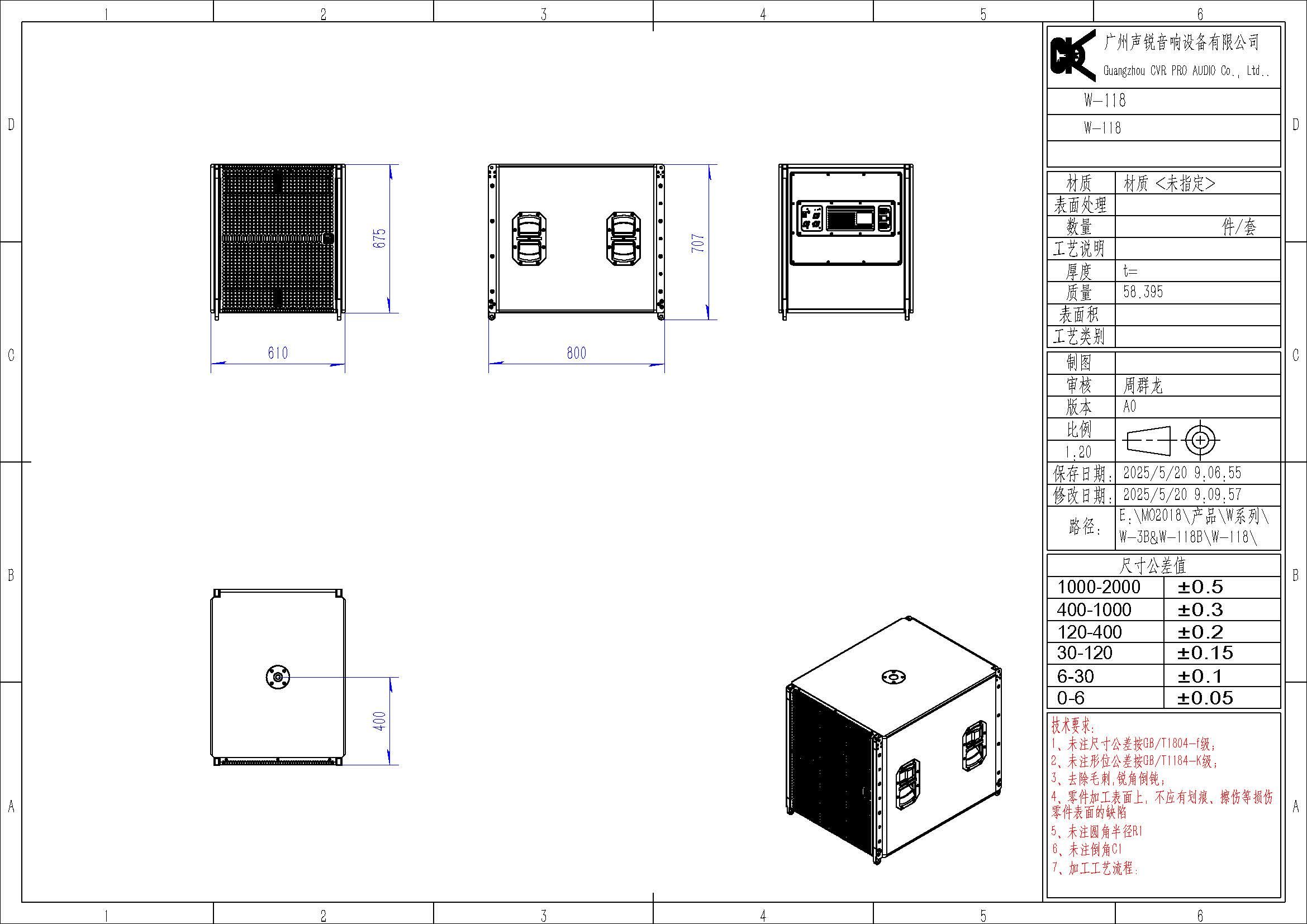

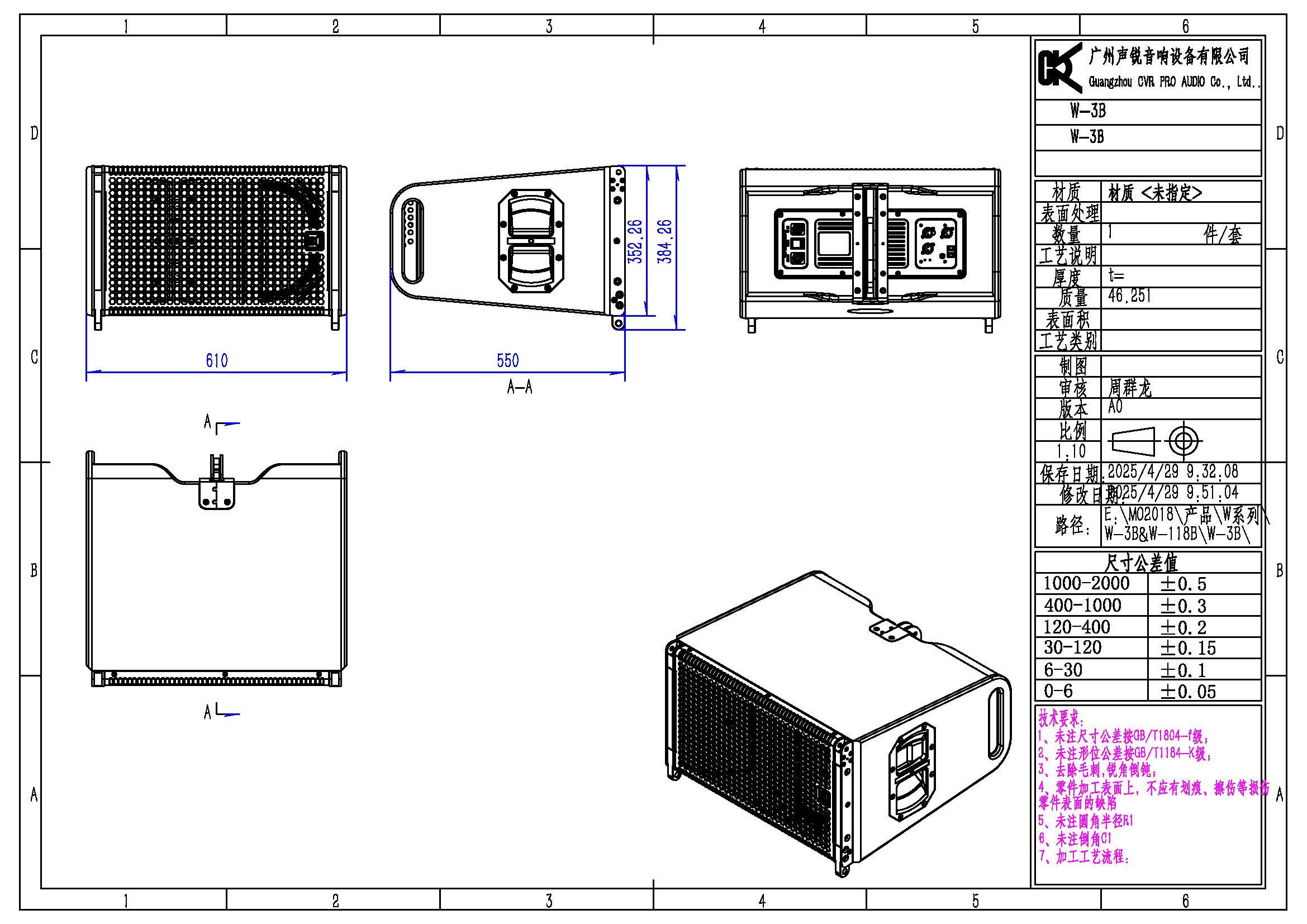

Drawing
Connection Diagram
