T-504 & T-18S
T series consist of all kind of pro-loudspeakers made by 18mm plywood.The feature is of small dimension and size,dynamic power and assembled with high performance speaker unit. T series are designed with perfect audio effect and outsanding performace to meet the consumer's needs with its reasonable price.All are with attractive appearance and small cabinets,fashionable styles and flexible combinations. T series is widely installed in the club,KTV room,bar,conference,etc.
Description
- T-504&T-18S is a long-range column line array system with compact structure, novel appearance, excellent performance and convenient operation.
- The T-504&T-18S system consists of T-504H high frequency column, T-504L mid frequency column and T-18S subwoofer. T-504H consists of two 1.4 inch titanium diaphragm neodymium compression drivers and two 5 inch (25mm coil) woofers. T-504L consists of four 5 inch (25mm coil) woofers. T-18S is a subwoofer composed of one 18 inch (100mm coil) woofer, equipped with a 4-channel switching digital amplifier module, built-in precision-adjusted DSP control, strong energy, good coupling
- Original line array cylindrical wave diffusion technology, uniform and wide sound field coverage, longer projection distance
- Plug-and-play modular system construction, compact and light weight box, can be quickly installed by one person in a few minutes, easy to operate.Application scenarios at auditorium,Concert hall,Church,Club,Mobile performance etc.
Parameter
TECHNICAL PARAMETERS | |
|---|---|
| Model | T-540H |
| Type | Line arry Column system |
| Frequency Response | 90Hz-20kHz±3dB |
| Power handling | 120W(RMS)480W(PEAK) |
| Sensitivity | 99dB(1W@1M) |
| Max SPL | 125dB(PEAK/1M) |
| Drivers | LF2×5"(125mm) woofer 25mm(1in)coil HF2×1.4"neodymium compression driver with 36mm(1.4in) titanium diaphragm |
| Nominal impedance | 4 ohm |
| Coverage | 110º H×10º V |
| Connectors | Connector |
PHYSICAL PARAMETERS | |
| Finish | Polyurea Coatings |
| Enclosure Material | Plywood |
| Dimensions | 159.1×567.2×185mm(W×H×D) |
| Packing Dimensions | 395×633×255mm(W×H×D)/0.064cbm |
| Net weight | 7.5kg |
| Gross weight | 16.7kg |
TECHNICAL PARAMETERS | |
|---|---|
| Model | T-540L |
| Type | Line arry Column system |
| Frequency Response | 90Hz-4kHz±3dB |
| Power handling | 240W(RMS)960W(PEAK) |
| Sensitivity | 99dB(1W@1M) |
| Max SPL | 123dB(PEAK/1M) |
| Drivers | LF4×5"(125mm) woofer 25mm(1in)coil |
| Nominal impedance | 8 ohm |
| Coverage | 110º H×20º V |
| Connectors | Connector |
PHYSICAL PARAMETERS | |
| Finish | Polyurea Coatings |
| Enclosure Material | Plywood |
| Dimensions | 159.1×598.1×185mm(W×H×D) |
| Packing Dimensions | 395×667×255mm(W×H×D)/0.067cbm |
| Net weight | 8.5kg |
| Gross weight | 19.1kg |
TECHNICAL PARAMETERS | |
|---|---|
| Model | T-18S&T-18SP(Active) |
| Type | subwoofer system |
| Frequency Response | 30Hz-150Hz±3dB |
| Power handling | 1000W(RMS)4000W(PEAK) |
| Sensitivity | 106dB(1W@1M) |
| Max SPL | 140dB(PEAK/1M) |
| Drivers | 1×18"(460mm) woofer 100mm(4in)coil |
| Nominal impedance | 8ohm |
| Connectors | 2×NL4MP speakon |
PHYSICAL PARAMETERS | |
| Finish | Polyurea Coatings |
| Enclosure Material | Birch Plywood |
| Dimensions | 550×671×825mm(W×H×D) |
| Packing Dimensions | 620×745×895mm(W×H×D)/0.41cbm |
| Net weight | 57kg(T-18S)/63.5kg(T-18SP) |
| Gross weight | 61.5kg(T-18S)/68kg(T-18SP) |
| POWER AMPLIFIER PARAMETERS | |
| Amplifier type | Switching mode amplifier, class D circuit |
| Power Output (RMS) | 1×2600W/8ohm 2×900W/8ohm |
| Other functions | DSP Buiit-in |
| Weight | 6.5kg |
| Configuration | The amp module is built inside T-18SP which is designed topower2×T-504L 1×T-504H 1×T-18SP |

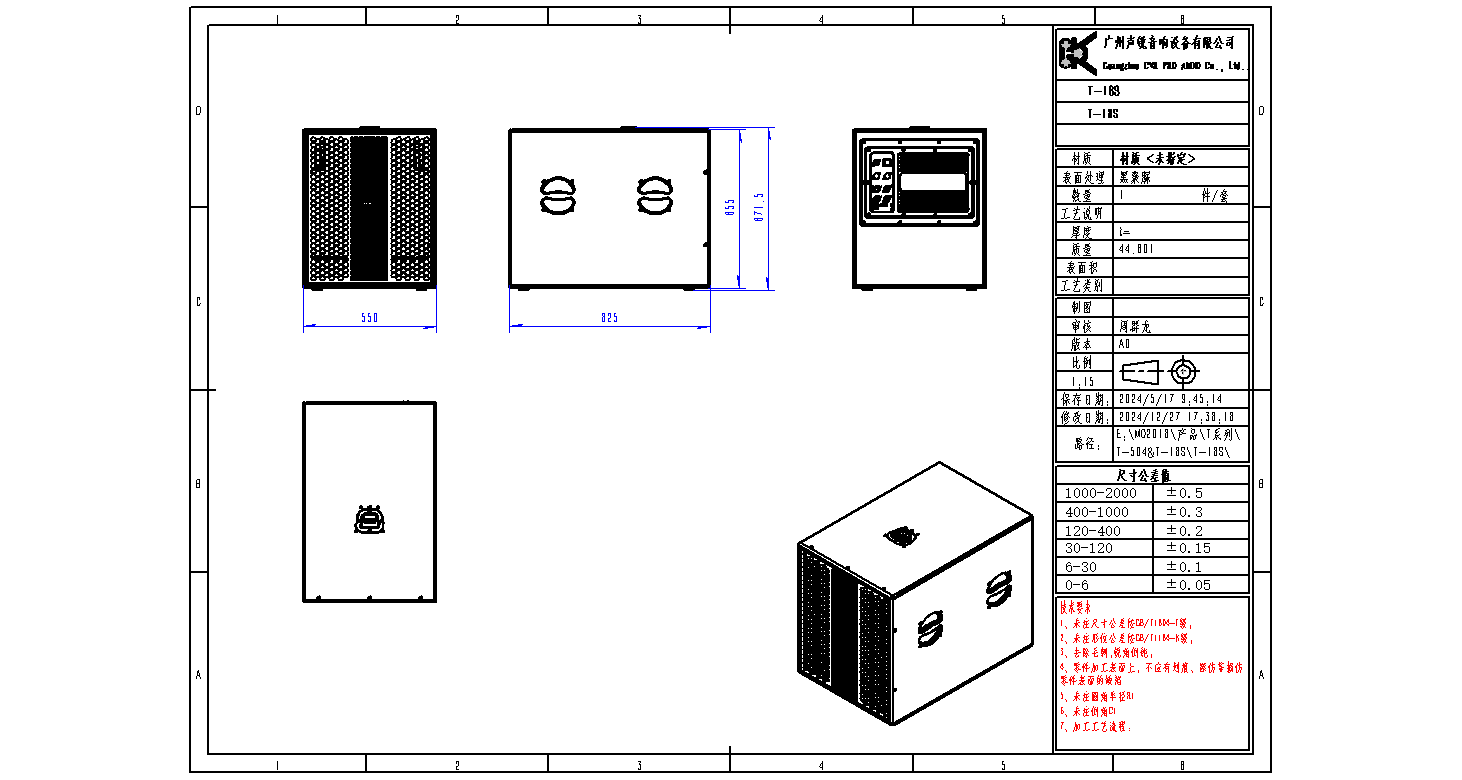

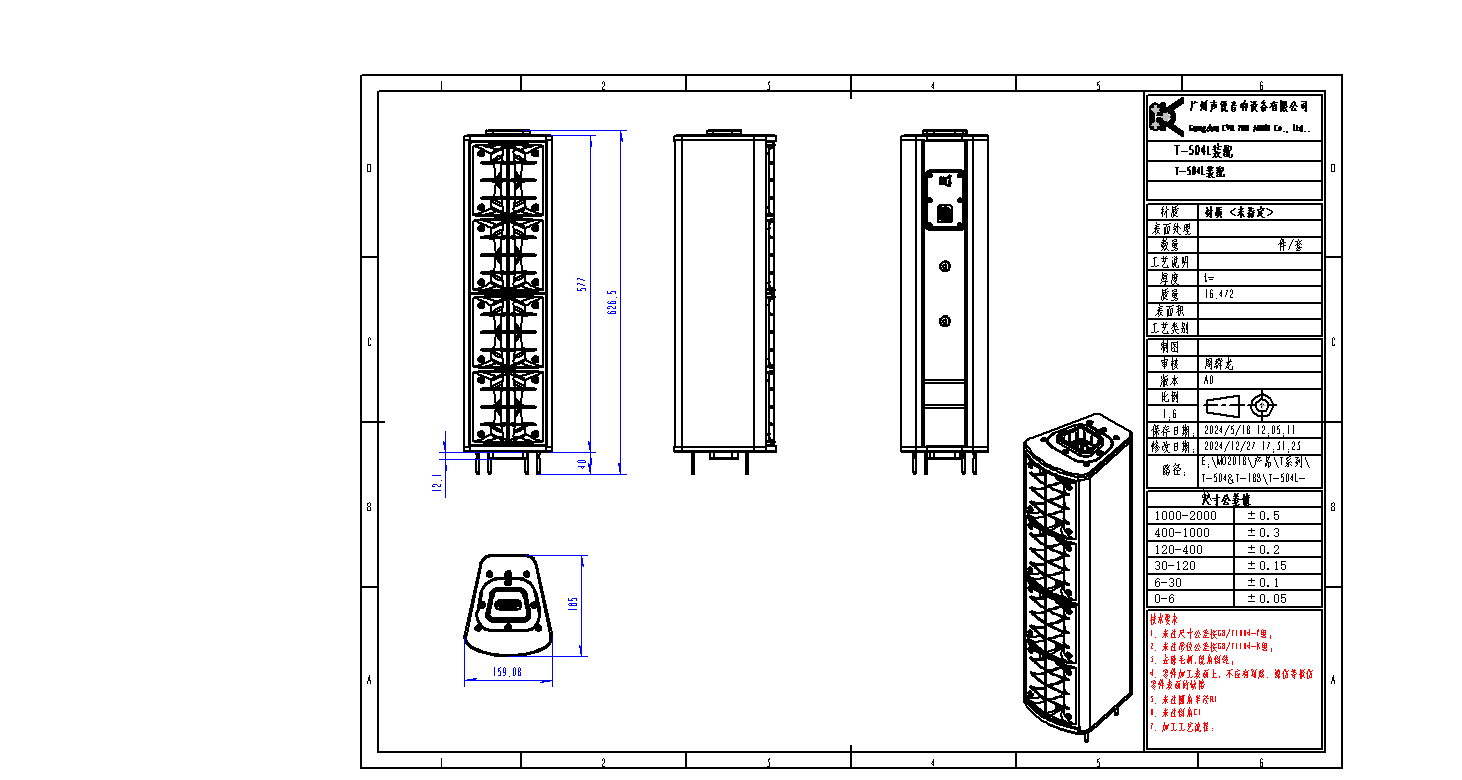

Drawing
Connection Diagram
