T-445&T-121/T-121P(Active)

T-445&T-121P is a self-powered line array column system with compact structure, novel appearance and excellent performance.The T-445 & T-121 system is made of a full range column top and a bandpass subwoofer. The T-445 consists of four pieces of 4.5-inch drivers. The T-121P bandpass subwoofer consists of one 12-inch woofer, equipped with a 2-channel switching mode amplifier module, built-in DSP control and mixing, Line input and microphone input are both available and switchable.Plug-and-play modular system construction, compact and light weight cabinets, can be quickly installed by one person in a few minutes, easy to operate.Applications:          auditorium         concert hall         houses of worship         club         mobile performance

Product number:

Category: T SERIES
BACK

Back to list

Inquire Now
info@cvraudio.com

隐藏域元素占位

  • Product Description
  • Parameter

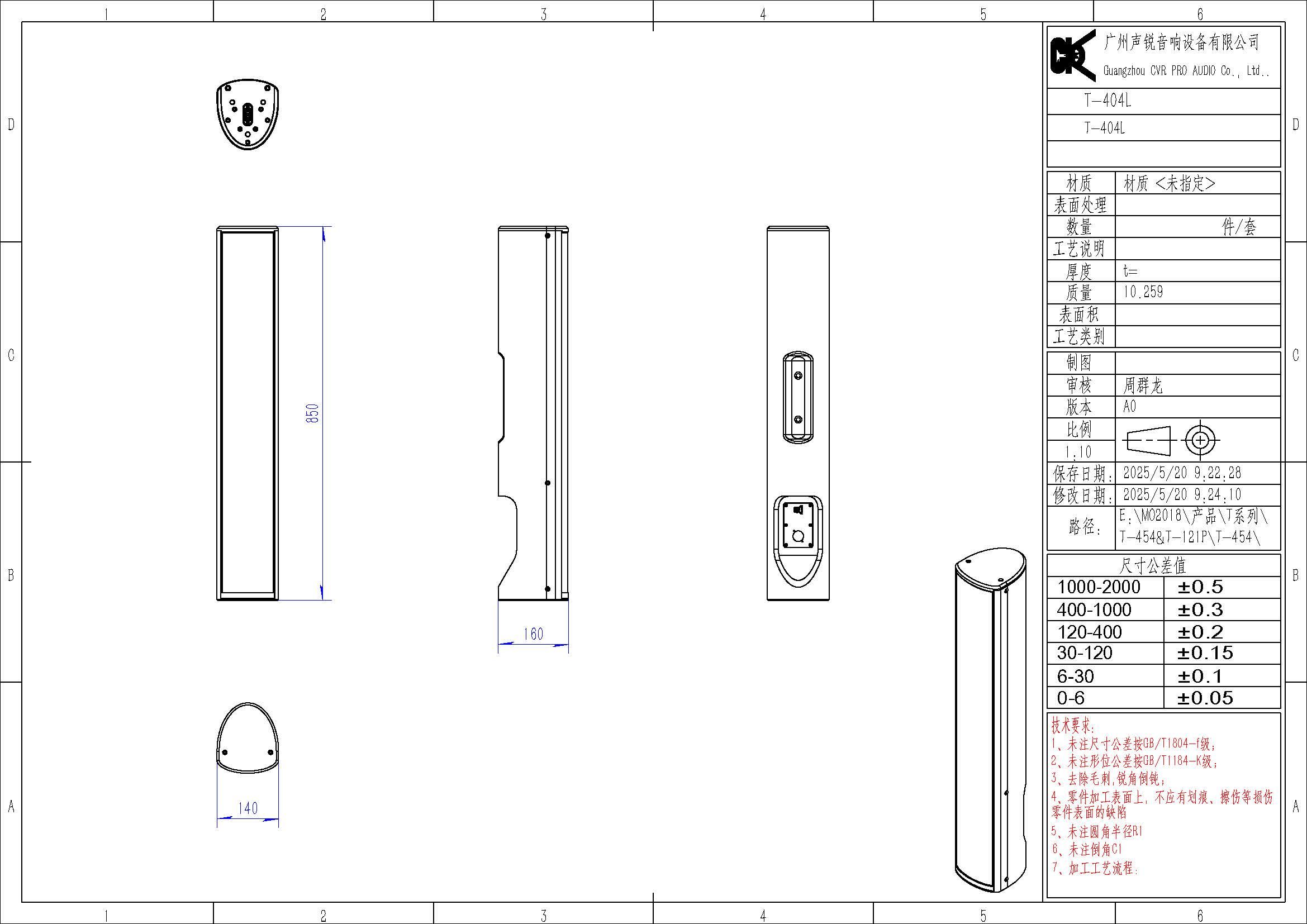

  • Drawing
  • Connection Diagram
  • Accessories
    • T-445&T-121P is a self-powered line array column system with compact structure, novel appearance and excellent performance.
    • The T-445 & T-121 system is made of a full range column top and a bandpass subwoofer. The T-445 consists of four pieces of 4.5-inch drivers. The T-121P bandpass subwoofer consists of one 12-inch woofer, equipped with a 2-channel switching mode amplifier module, built-in DSP control and mixing, Line input and microphone input are both available and switchable.
    • Plug-and-play modular system construction, compact and light weight cabinets, can be quickly installed by one person in a few minutes, easy to operate.
    • Applications:

             auditorium

             concert hall

             houses of worship

             club

             mobile performance

  • TECHNICAL PARAMETERS
    ModelT-445
    TypeLine arry Column system
    Frequency Response100Hz-20kHz±3dB
    Power handling150W(RMS)600W(PEAK)
    Sensitivity99dB(1W@1M)
    Max SPL121dB(PEAK/1M)
    DriversLF4×4.5inch(115mm) woofer 25mm(1in)coil
    Nominal impedance 8 ohm
    Coverage80º
    ConnectorsConnector
    PHYSICAL PARAMETERS
    FinishPolyurea Coatings
    Enclosure MaterialPlywood
    Dimensions140×850×160mm(W×H×D)
    Packing Dimensions380×930×230mm(W×H×D)/0.081cbm(2xT-445)
    Net weight8kg
    Gross weight11kg
    TECHNICAL PARAMETERS
    ModelT-121&T-121P(Active)
    Typesubwoofer system
    Frequency Response40Hz-150Hz±3dB
    Power handling500W(RMS)2000W(PEAK)
    Sensitivity 105dB(1W@1M)
    Max SPL138dB(PEAK/1M)
    Drivers1×12inch(310mm)  woofer 90mm(3.5in)coil
    Nominal impedance8ohm
    Connectors2×NL4MP speakon
    PHYSICAL PARAMETERS
    FinishPolyurea Coatings
    Enclosure MaterialBirch Plywood
    Dimensions360×855×420mm(W×H×D)
    Packing Dimensions 430×930×490mm(W×H×D)/0.195cbm
    Net weight35kg(T-121)/39kg(T-121P)
    Gross weight 39kg(T-121)/43kg(T-121P)
    POWER AMPLIFIER PARAMETERS
    Amplifier typeSwitching mode amplifier, class D circuit
    Power Output (RMS)2×900W/8ohm
    Other functionsDSP Buiit-in
    Weight3.6kg
    ConfigurationThe amp module is built inside T-121P, which is designed topower 1×T-445& 1×T-121P
