Two-way line array system&Line array subwoofer system

W-208 & W-18/W-208P & W-18P

W-208&W-208P is a line array system which is made of two 8" neodymium woofers, one 3" titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-208&W-208P will integrate seamlessly with W-18&W-18P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-208&W-208P is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.

Product number:1085526894100238336

Category: DISCONTINUED
BACK

Back to list

Inquire Now
info@cvraudio.com

隐藏域元素占位

  • Product Description
  • Parameter

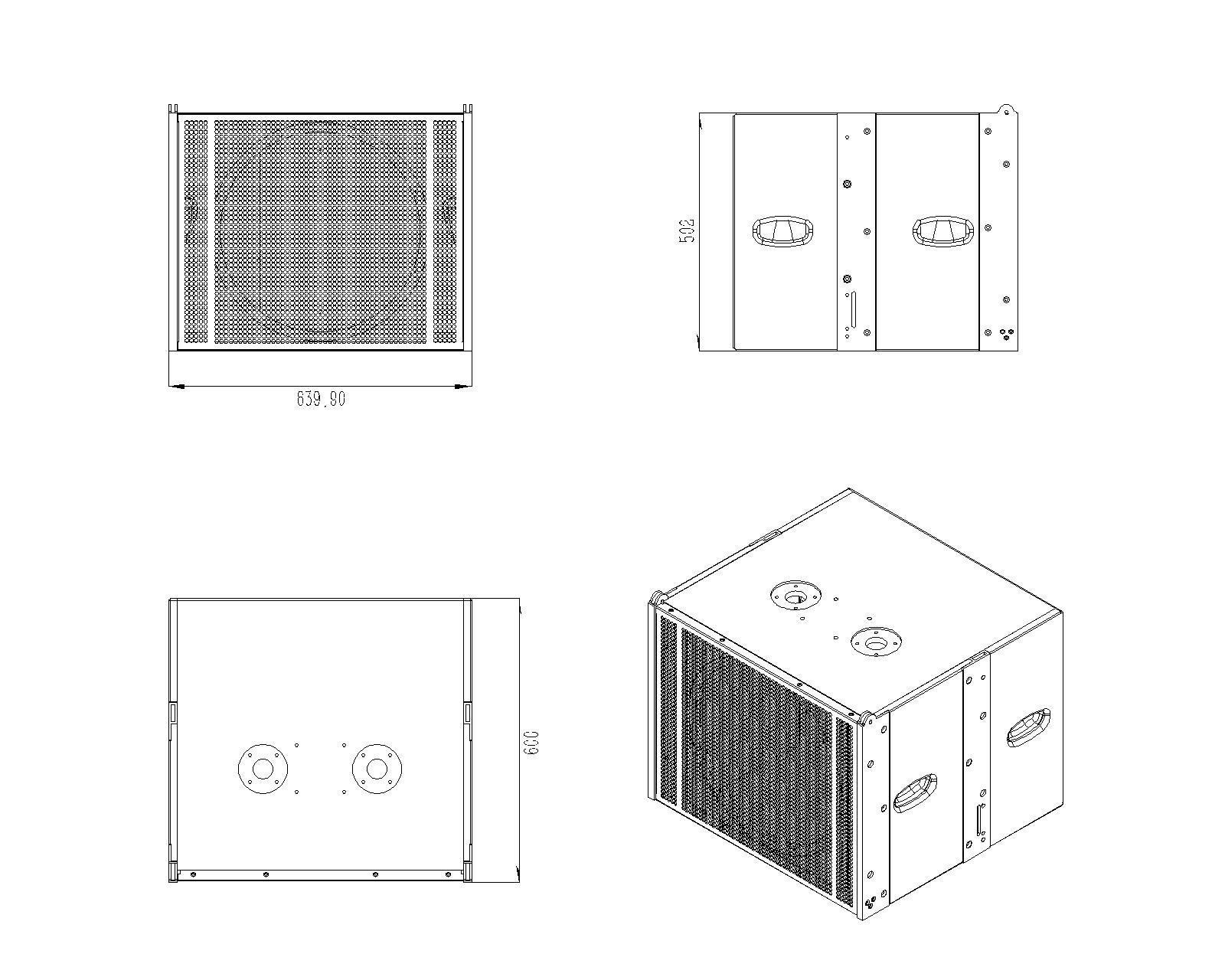

  • Drawing

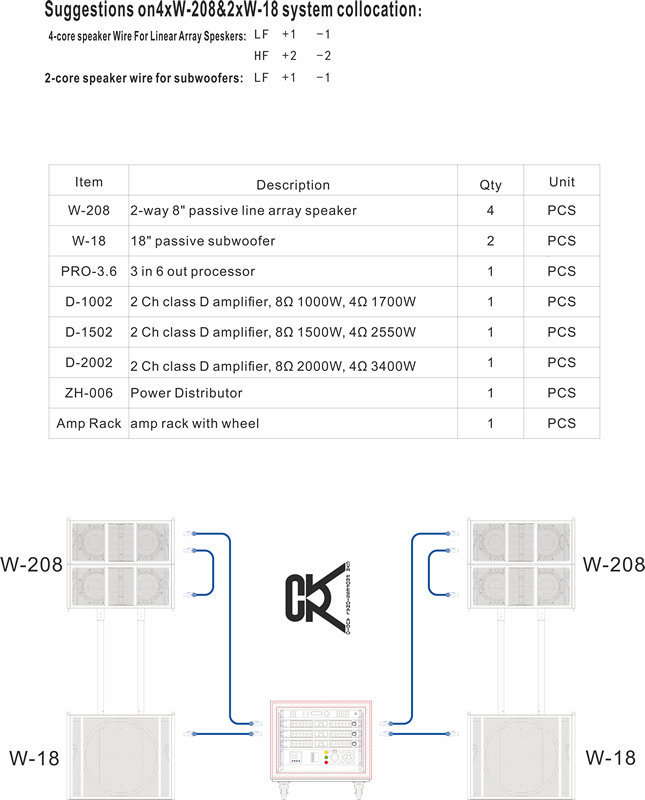

  • Connection Diagram
  • Accessories
  • W-208&W-208P is a line array system which is made of two 8" neodymium woofers, one 3" titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of wave phase philosophy. Wherever low frequency extension is required, a W-208&W-208P will integrate seamlessly with W-18&W-18P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-208&W-208P is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.
    Keywords:
    • W-208

  • Model

    W-208&W-208P

    Type

    Two-way line array system

    Frequency Response

    70Hz-20KHz±3dB

    Power handling

    LF 400W(RMS)1600W(PEAK)

    　

    HF 100W(RMS)400W(PEAK)

    Sensitivity

    LF 100dB(1W@1M)

    　

    HF 101dB(1W@1M)

    Max SPL

    LF 125dB(PEAK/1M)

    　

    HF 128dB(PEAK/1M)

    Drivers

    LF 2×8"(210mm) neodymium woofer 75mm(3in)coil

    　

    HF 1×3" neodymium compression driver with 75mm titanium diaphragm

    Nominal impedance

    LF 16 ohm



    HF 16 ohm

    Coverage

    110°H×10°V

    Connections

    LF 1(+)1(-) HF 2(+)2(-)

    Connectors

    2×NL4MP speakon

    Finish

    Textured high-density polyurethane coating

    Enclosure Material

    Birch Plywood

    Crossover

    LF  70Hz-2KHz   HF 2KHz-20KHz

    Dimensions

    640×261×380mm(W×H×D)

    Packing Dimensions

    730×365×450mm(W×H×D)0.12cbm

    Net weight

    25.5kg (W-208) 27.5kg(W-208P)

    Gross weight

    26.5kg (W-208) 28.5kg(W-208P)




    Model

    W-18&W-18P

    Type

    Sub-bass system

    Frequency Response

    40Hz-500Hz±3dB

    Power handling

    600W(RMS)2400W(PEAK)

    Sensitivity

    101dB(1W@1M)

    Max SPL

    129dB(PEAK/1M)

    Driver

    1×18"(460mm) woofer 100mm(4in)coil

    Nominal impedance

    8 ohm

    Finish

    Textured high-density polyurethane coating

    Connectors

    2×NL4MP speakon

    Enclosure Material

    Birch Plywood

    Dimensions

    640×502×600mm(W×H×D)

    Packing Dimensions

    720×610×670mm/0.29cbm

    Net weight

    48.5kg  (W-18)/50.5kg(W18P)

    Gross weight

    50.5kg  (W-18)/52.5kg(W18P)



    W-181DP（Active）Suggested Power Amp:P-900DSP


  • W-208







    W-208

  •

    W-208





    W-208





    W-208









  • W-208







                                           W-208&W-18 Flying Frame













    W-208





                                  M20  connector



















    W-208







                                  M20x35x600  Support Bar
