Two-way line array system&Line array subwoofer system

W-102/W-181D & W-102P/W-181DP


W-102&W-102P is a line array system which is made of one 10" neodymium woofers, one 2.5" titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. Wherever low frequency extension is required, a W-102&W-102P will integrate seamlessly with W-181 or W-181P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-102&W-102P is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.

Product number:1085526890874818560

Category: DISCONTINUED

隐藏域元素占位

  • Product Description
  • Parameter
  • Drawing
  • Connection Diagram
  • Accessories
  • W-102&W-102P is a line array system which is made of one 10" neodymium woofers, one 2.5" titanium neodymium compression drivers and high-performance low-distortion compression driver with innovative horn design of waves phase philosophy. Wherever low frequency extension is required, a W-102&W-102P will integrate seamlessly with W-181 or W-181P line array sub-bass system in a standard configuration. Each enclosure is equipped with rigging system, allowing flown array to be constructed rapidly and safely. W-102&W-102P is very versatile and scalable for a wide range of applications in touring performance, corporate and fixed installation fields.

    W-181/W-181P is dedicated high performance sub-bass system designed to augment the low frequency output of the W-102, W-181/W-181P is a sub-bass enclosure which must be flown with W-102&W-102P. Its physical dimensions are identical to the W-102&W-102P and it is equipped with the same proprietary rigging system. It features with a 18" neodymium woofers with magnet structure and suspensions engineered for maximum linear excursion. The W-181P with features a highly efficient power amp module and incorporated DSP.






  • Model

    W-102&W102P

    Type

    Two-way line array system

    Frequency Response

    70Hz-20KHz±3dB

    Power handling

    LF 350W(RMS)1400W(PEAK)



    HF 100W(RMS)400W(PEAK)

    Sensitivity

    LF 100dB(1W@1M)



    HF 102dB(1W@1M)

    Max SPL

    LF 125dB(PEAK/1M)



    HF 129dB(PEAK/1M)

    Drivers

    LF 1×10"(260mm)neodymium woofer 65mm(2.5in)coil



    HF 1×2.5" neodymium compression driver with 65mm titanium diaphragm

    Nominal impedance

    8 ohm

    Coverage

    110ºH×10ºV

    Connectors

    2×NL4MP speakon

    Enclosure Material

    HDPE

    Dimensions

    560×245×375mm(W×H×D)

    Packing Dimensions

    640×370×490mm(W×H×D)/0.115cbm

    Net weight

    15kg(W-102)/16kg(W-102P)

    Gross weight

    18.5kg(W-102)/19.5kg(W-102P)





    Model

    W-181D&W-181DP

    Type类型

    Line array subwoofer system

    Frequency Response

    40Hz-500Hz±3dB

    Power capacity

    1000W(RMS)4000W(PEAK)

    Sensitivity

    103dB(1W/1M)

    Max SPL

    132dB(1W/1M)

    Drivers

    1×18"(460mm)woofer with 100mm (4in) coil

    Nominal impedance

    8 ohm

    Connectors

    2×NL4MP speakon

    Finish

    Textured paint

    Enclosure Material

    Plywood

    Dimensions

    561×776×680mm(W×H×D)

    Packing Dimensions

    645×830×765mm(W×H×D)/0.41cbm

    Net weight

    40.5kg(W-181D)/42kg(W-181DP)

    Gross weight

    44.5kg(W-181D)/46kg(W-181DP)



    W-102P(Active)Suggested Power Amp:P-400

    W-181DP(Active)Suggested Power Amp:P-2900DSP

  • W-102






    W-102




  • W-102

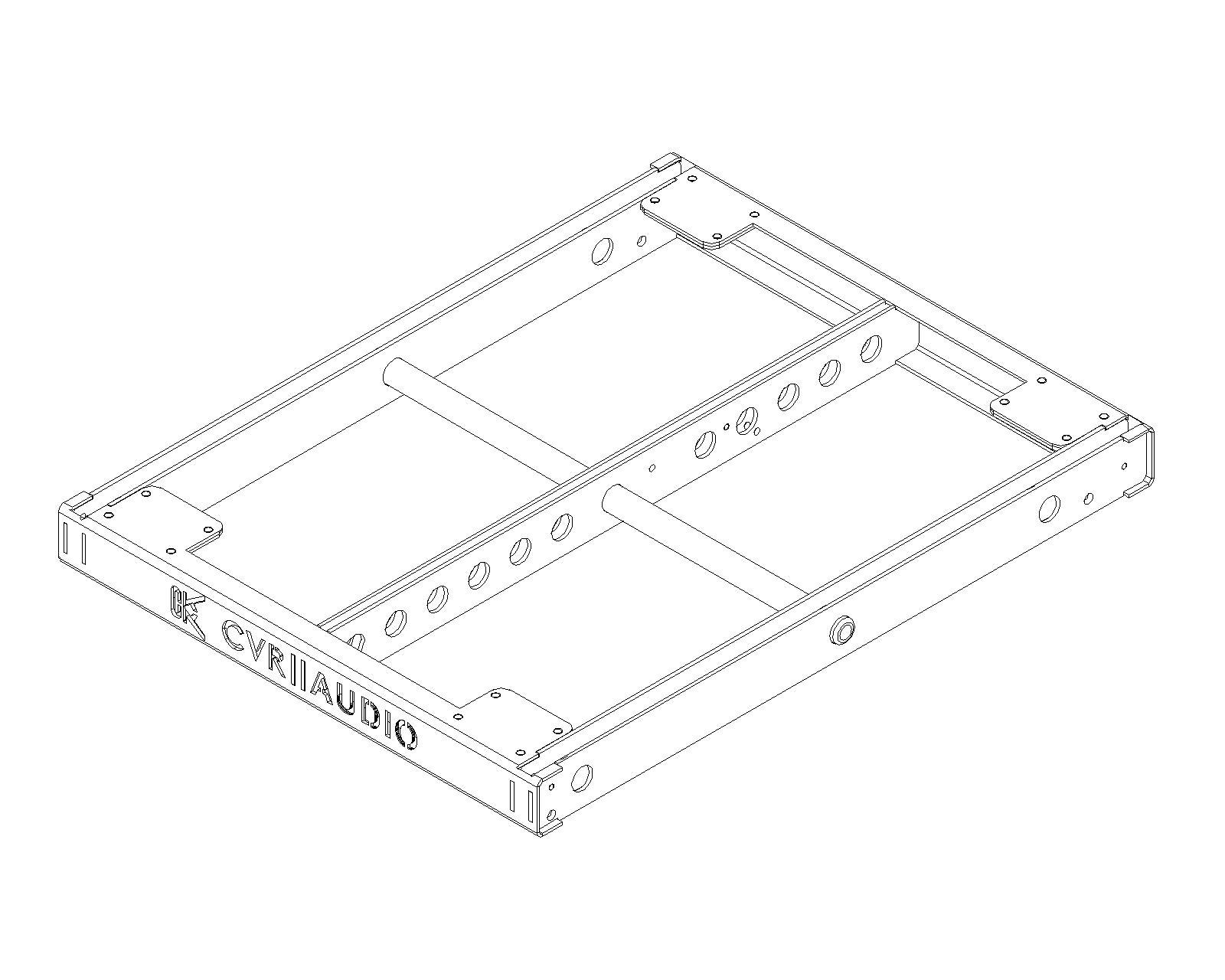

                                  W-102&W-181D Flying Frame
















    W-102





                                  W-102&W-181D T- Frame
















    W-102







                                  W-102 Landing Frame














    W-102





                                  W-102 U-Bracket
















    W-102





                                  M20x35x600 Support Bar
