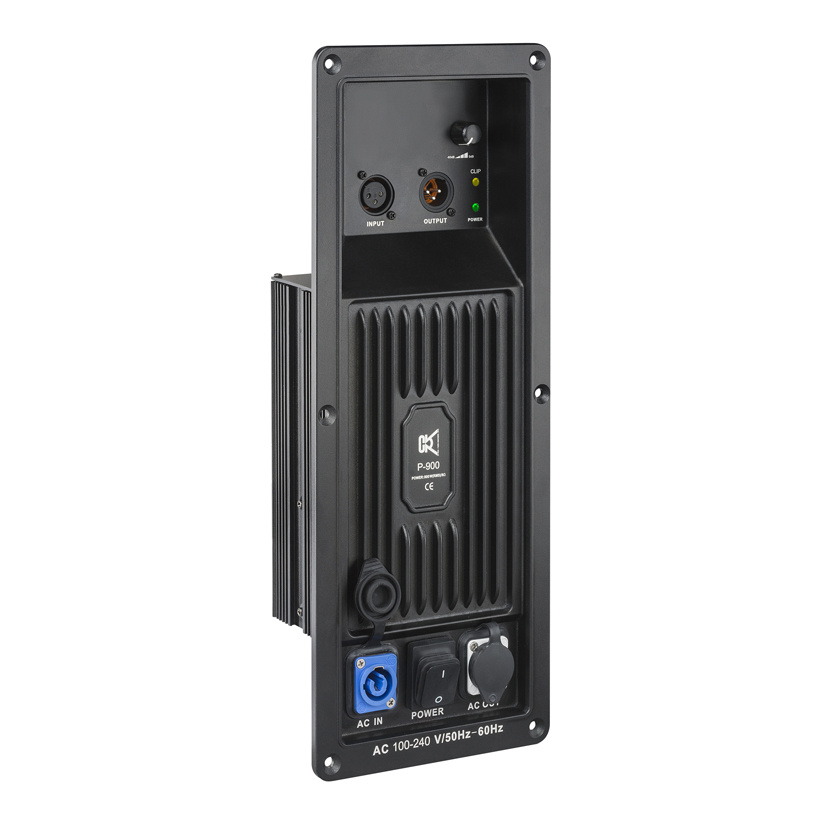

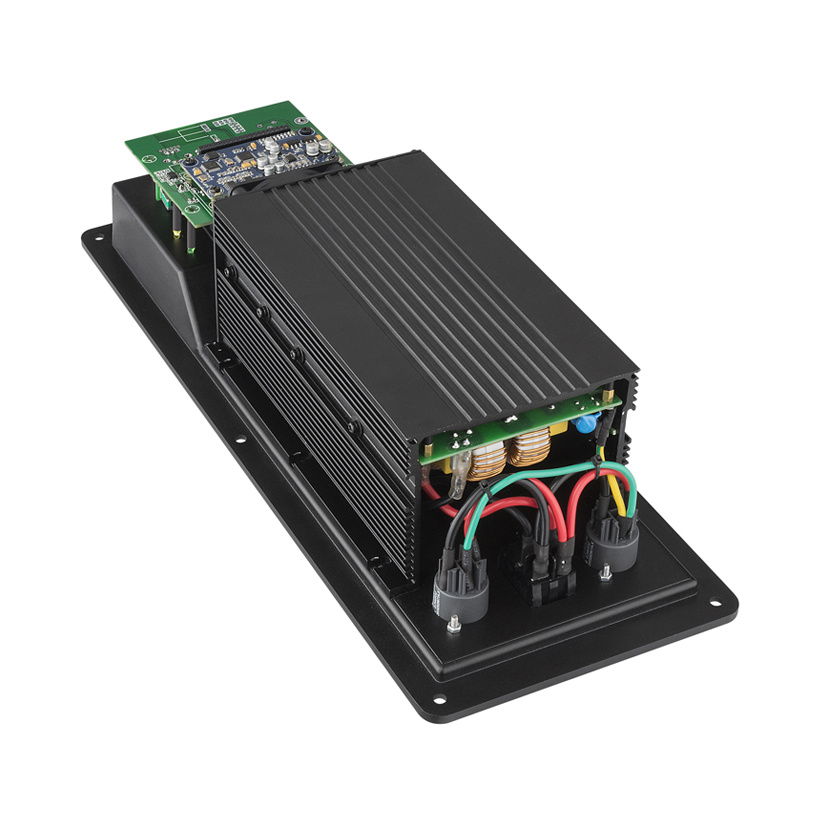

power amplifier module

P-900


P series power amplifier modules are class D digital power amplifier modules.Efficient,stable and energy saving.The switching power supply is designed with compact PFC technology,with a full voltage working range,which can adapt to various harsh power supply environments and provide continuous surging power.

Product number:1085526838311800832

Category: AMP Modules

隐藏域元素占位

  • Product Description
  • Parameter
  • Drawing
  • Connection Diagram
  • Accessories
  • P series power amplifier modules are class D digital power amplifier modules.Efficient,stable and energy saving.The switching power supply is designed with compact PFC technology,with a full voltage working range,which can adapt to various harsh power supply environments and provide continuous surging power.

    Features:

     100VAC~240VAC wide voltage working range;

     High-performance audio dedicated DSP;

     High Dynamic and high Precision AD/DA Converter;

     RS-485 remote debugging and monitoring;

     Modular design, easy maintenance;

     Multi-channel design, wide range of applications;

    Product Functions:

     1 in 2 out, 2 in 3 out, 48KHz sampling frequency;

     Channels can be mixed in any ratio, with equalization, phase, delay, crossover, limiter, gain, mute, etc;

     Each channel with 8.3ms delay, input and output have 8 parametric equalization, support for PEQ, High Shelf, Low shelf EQ;

     Three high and low pass filters: Butterworth, Bessel, Linkwitz-Riley, with12dB, 18dB, 24dB, 48dB adjustable, frequency 1/3oct step 15 segment parametric EQ;

     With channel copy function, you can quickly copy and adjust parameters;

     Digital limiter, start level, start release time can be adjusted;

     Built-in white noise generator;

  • TECHNICAL PARAMETERS

    Model

    P-900

    8ΩPower

    900W

    4ΩPower

    1300W

    Frequency Response

    20Hz-22KHz(±0.5dB)

    Input Sensitivity

    1V

    Damping factor

    >300

    Input Impedance

    Balanced 10K/unbalanced 20K

    Signal Noise Ration(dB)

    95dB

    Amplifier Type

    class D

    Power Requirement

    100V-250VAC,50Hz-60Hz

    Dimensions

    155x395x100mm

    Net weight

    2kg
