Sub-bass system

T-218C/T-218CP


T-218C is a dual 18 inch subwoofer with super powerful bass sound effect, It is built with 2 pieces of 18 inch woofer with 4” voice coil and its enclosure is made in fine birch plywood, which makes it neat and elegant, solid in structure and less resonance.  It is an ideal  partner to all full range sound systems and suitable for outdoor events, stadium, theaters and other occasions where extreme bass is required.

Product number:1085526729721270272

Category: T SERIES

隐藏域元素占位

  • Product Description
  • Parameter

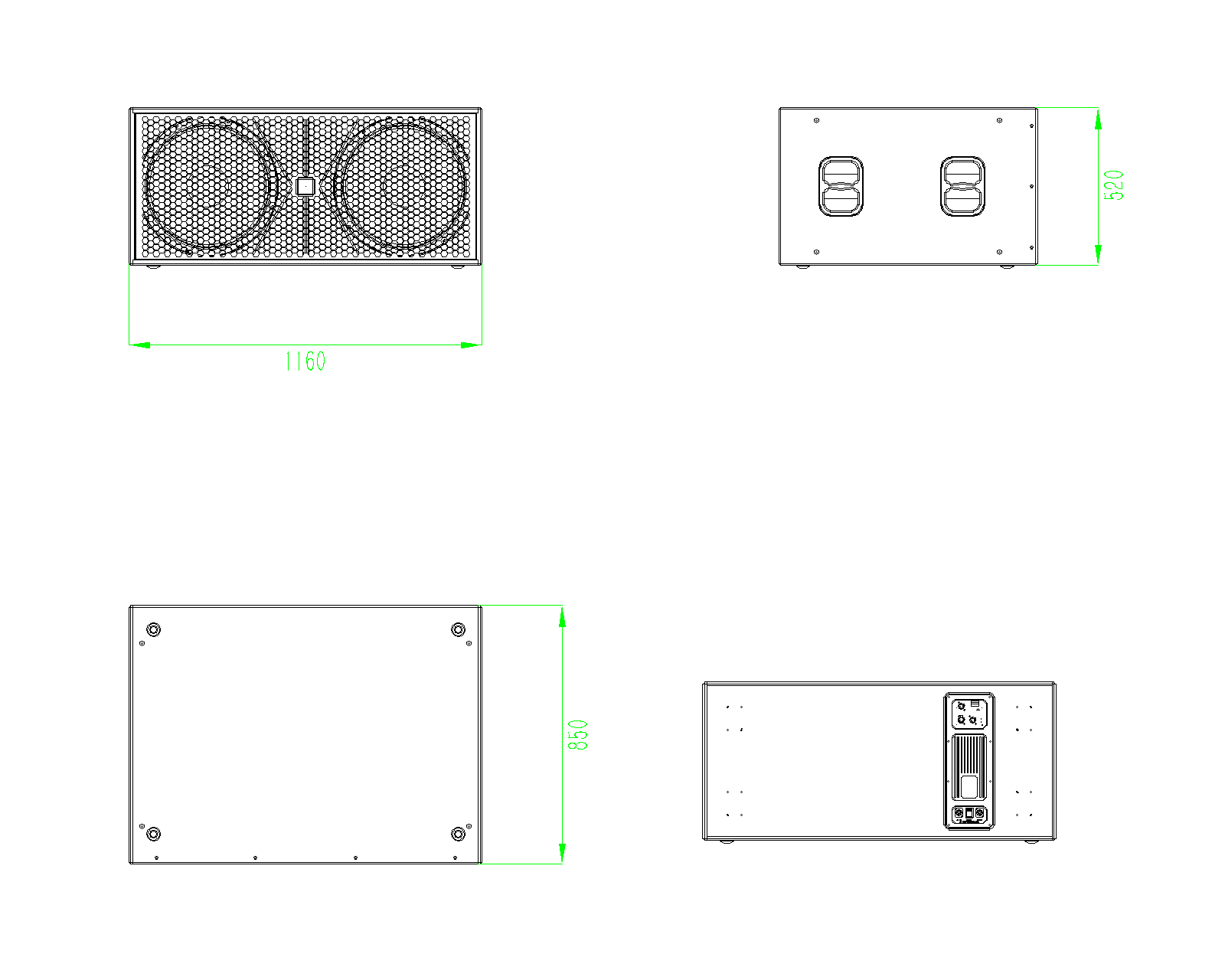

  • Drawing
  • Connection Diagram
  • Accessories
  • T-218C is a dual 18 inch subwoofer with super powerful bass sound effect, It is built with 2 pieces of 18 inch woofer with 4” voice coil and its enclosure is made in fine birch plywood, which makes it neat and elegant, solid in structure and less resonance.  It is an ideal  partner to all full range sound systems and suitable for outdoor events, stadium, theaters and other occasions where extreme bass is required.

  • TECHNICAL PARAMETERS

    Model

    T-218C/T-218CP(Active)

    Type

    Dual-drivers sub-bass system

    Frequency Response

    35Hz-200Hz±3dB

    Power handling

    2000W(RMS)8000W(PEAK)

    Sensitivity

    105dB(1W@1M)

    Max SPL

    138dB(PEAK/1M)

    Drivers

    2×18"(460mm) woofer 100mm(4in)coil

    Nominal impedance

    4 ohm

    PHYSICAL PARAMETERS

    Finish

    Textured paint

    Enclosure Material

    Plywood

    Dimensions

    520×1160×850mm(W×H×D)

    Packing Dimensions

    590×1240×920mm(W×H×D)/0.63cbm

    Net weight

    90kg(T-218C)/95kg (T-218CP)

    Gross weight

    97kg(T-218B)/102kg (T-218BP)

    POWER AMPLIFIER PARAMETERS

    Amplifier type

    Switching mode amplifier,class D circuit

    Power Output(RMS)

    4x900W/8ohm

    Other functions

    DSP Built-in

    Weight

    3.8kg

    Configuration

    The amp module is built inside T-218CP

  • T-218C
